PRJ-06 / PROJECT ARCHIVE

Plinth Road Signage & Culvert Moulds

Client / Sector: Not disclosed
Location: Lagos
Status: Completed
Service Pillars: Build

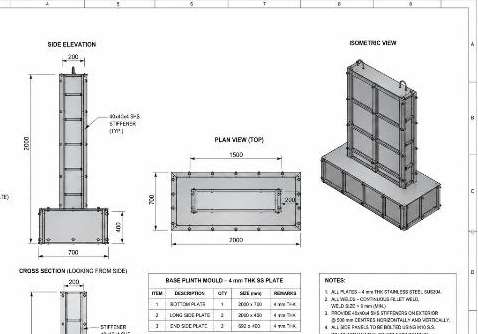

Engineering drawing of a base plinth mould: plan and elevations — Lagos

THE BRIEF & DELIVERABLES / PRJ-06

Scope & execution.

Archive: 3 design / technical visuals

Design and fabrication work for plinth road signage and culvert moulds. The engineering drawings show plans, elevations and mould details; they are drawings, not photographs of completed installations.

Service pillars delivered

Build →

IN DETAIL

The project archive.

Open any image for a closer look. Design renders and engineering drawings are labelled throughout.

Project archive

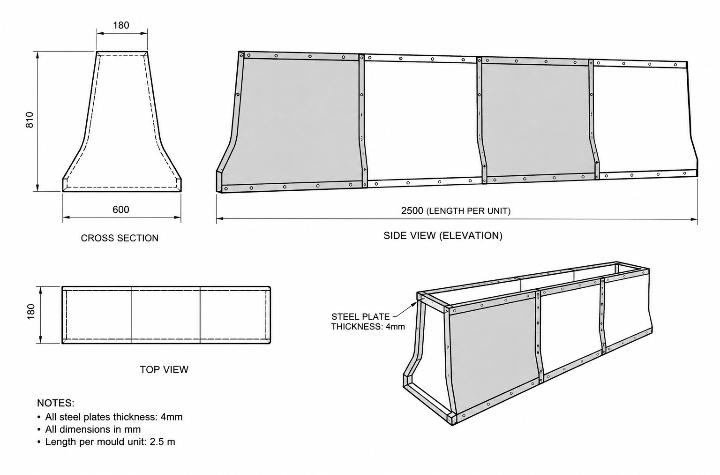

Engineering drawing of a culvert mould: side, top and perspective views — Lagos

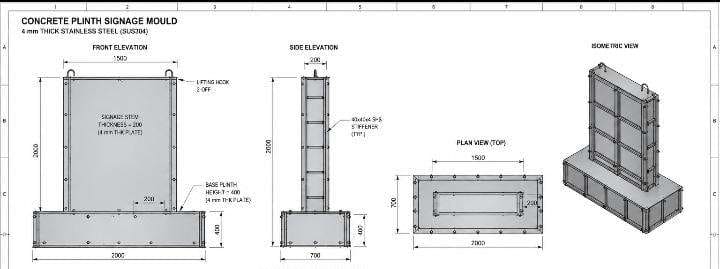

Engineering drawing of a concrete plinth signage mould — Lagos
